Rinsing nozzle "FLOUNDER" F

EXCELLENT PROPERTIES OF COLLECTING SEDIMENTS FROM THE SEWER BOTTOM

  • rinsing of sediments

    rinsing of sediments

  • rinsing

    rinsing

KEY INFORMATION

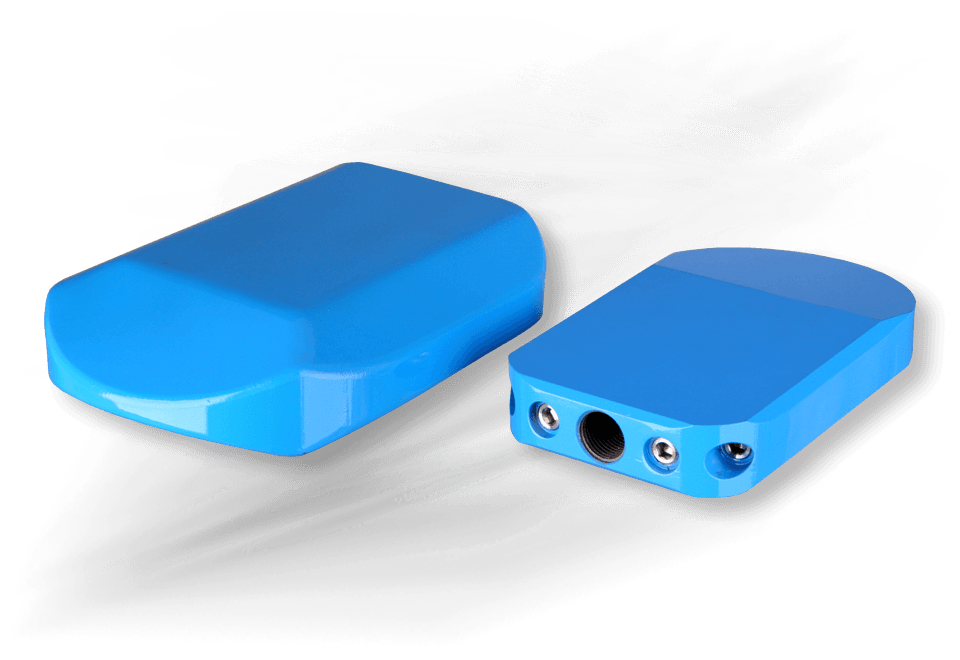

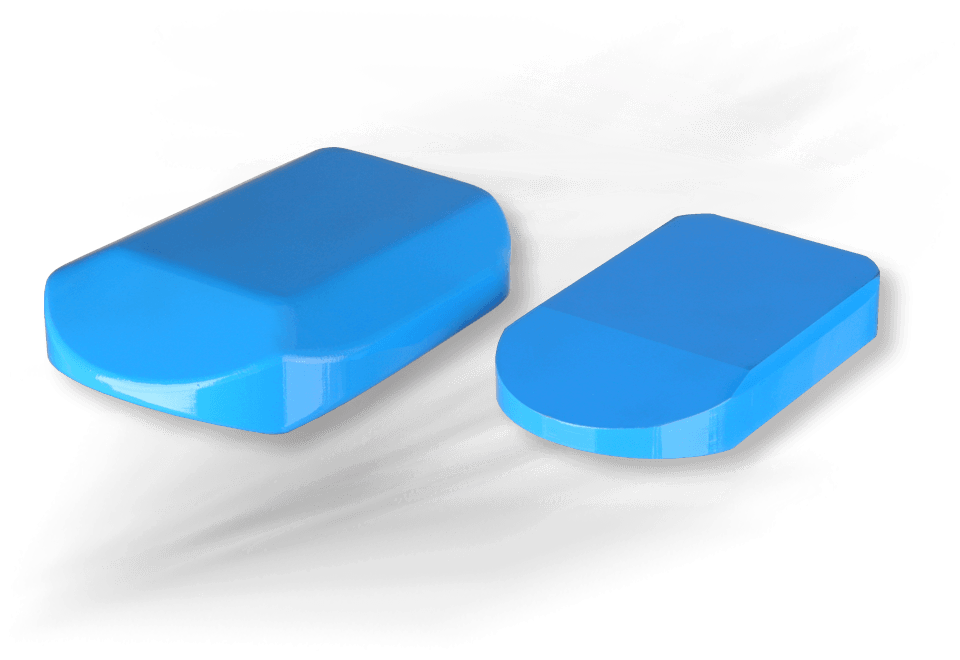

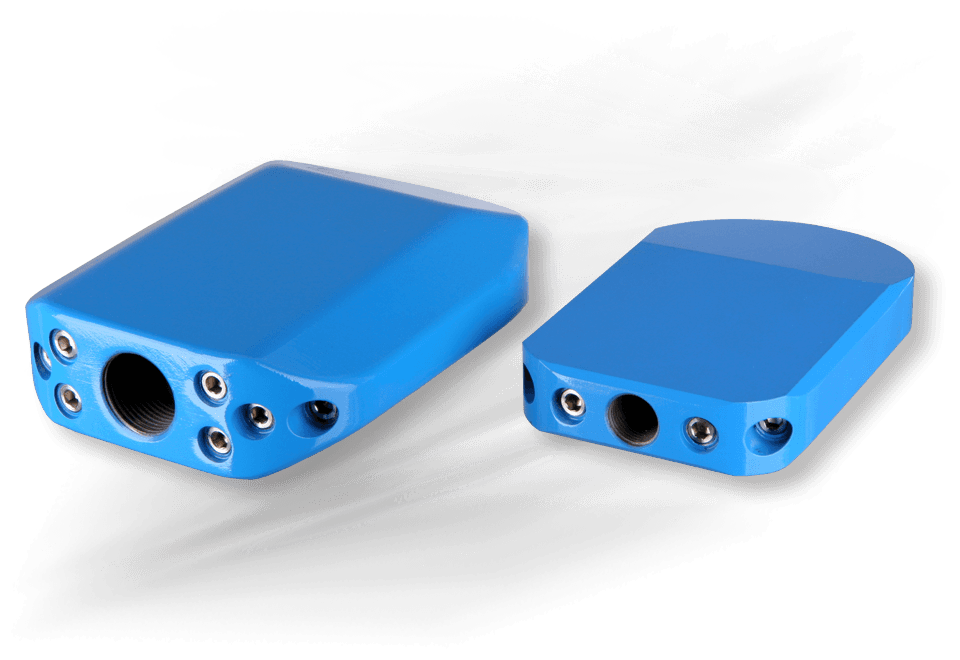

The flat F ‘Flounder’ rinsing nozzle, wedge-shaped, operating on a sewer bottom. Its distinctive shape allows it to move freely, while the whole energy of discharge nozzles is directed to the sewer bottom. Used for removing, rinsing heavy sand and stone deposits from the sewer bottom.

ADVANTAGES

  • 6 or 8 backward water jets (nozzles with ceramic inserts) depending on the model
  • water outflows directed to the sewer bottom
  • the nozzle available in the models: F-1, F-2, F-3, F-4

PARAMETRES OF HIGH-PRESSURE NOZZLES OF THE F ‘FLOUNDER’ FAMILY

* the number of holes can be selected based on the parameters of the high pressure pump
symbol DIMENSIONS thread number of holes

APPLICATION RANGE

weigh [kg]
front back

F-4 200x170x60 1", 5/4" - 8[D3M12] od Ø300 16,00
F-3 200x150x55 1", 5/4" - 8[D3M12] od Ø250 8,20
F-2 180x150x35 3/4" - 6(8)*[D3M8] od Ø200 5,85
F-1 180x110x30 1/2" - 4(6)*[D3M12] od Ø150 3,65
